4-Post Stertil-Koni platform

Versatile, reliable, and engineered for every vehicle type, from vans to the heaviest trucks. Stertil-Koni 4-Post Lifts combine strength, safety, and flexibility, making them ideal for workshops that demand maximum accessibility and efficient vehicle servicing. With models ranging from 5.5 tonnes to 25 tonnes, these lifts cover everything from compact commercial vans to ultra heavy-duty trucks and buses.

All Stertil-Koni 4-Post Lifts with EEA are designed with advanced hydraulic systems, minimal moving parts for reduced maintenance, and the intuitive ebright Smart Control System with a full-colour touchscreen for easy operation and maximum workshop efficiency.

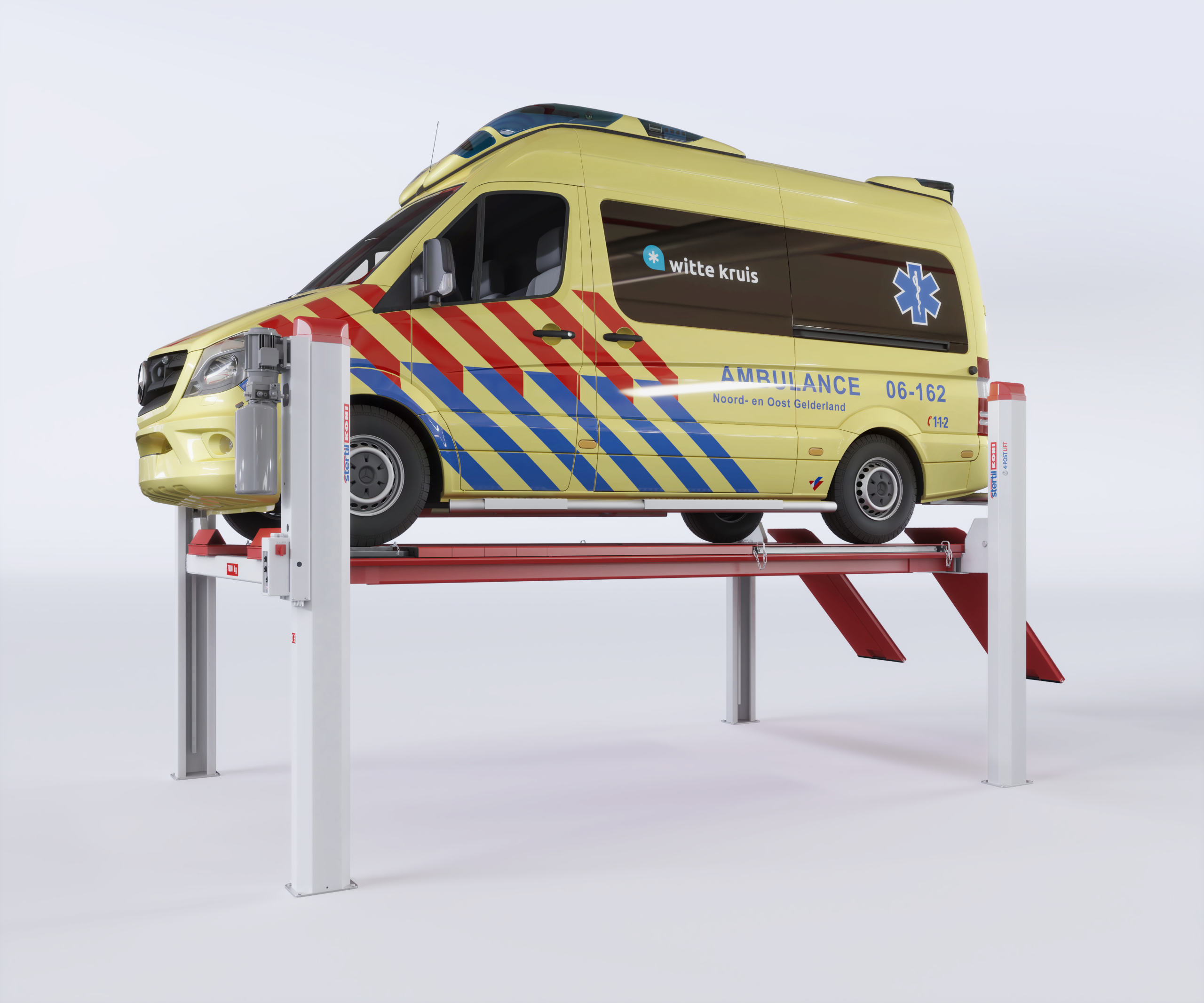

Compact 4-Post Lifts (5.5t & 7t)

Ideal for light commercial vehicles and smaller workshops.

1. Capacities: 5.5 tonnes (ST 4055) and 7 tonnes (ST 4070)
2. Low drive-on height (160 mm) for vehicles with low ground clearance
3. Adjustable platforms to fit different vehicle types
4. Space-saving design with short ramps, perfect for workshops with limited floor space
5. Stable and robust construction with maximum column spacing for wide vehicles
6. Adjustable lowering speed for safe, precise positioning on axle stands or jacks

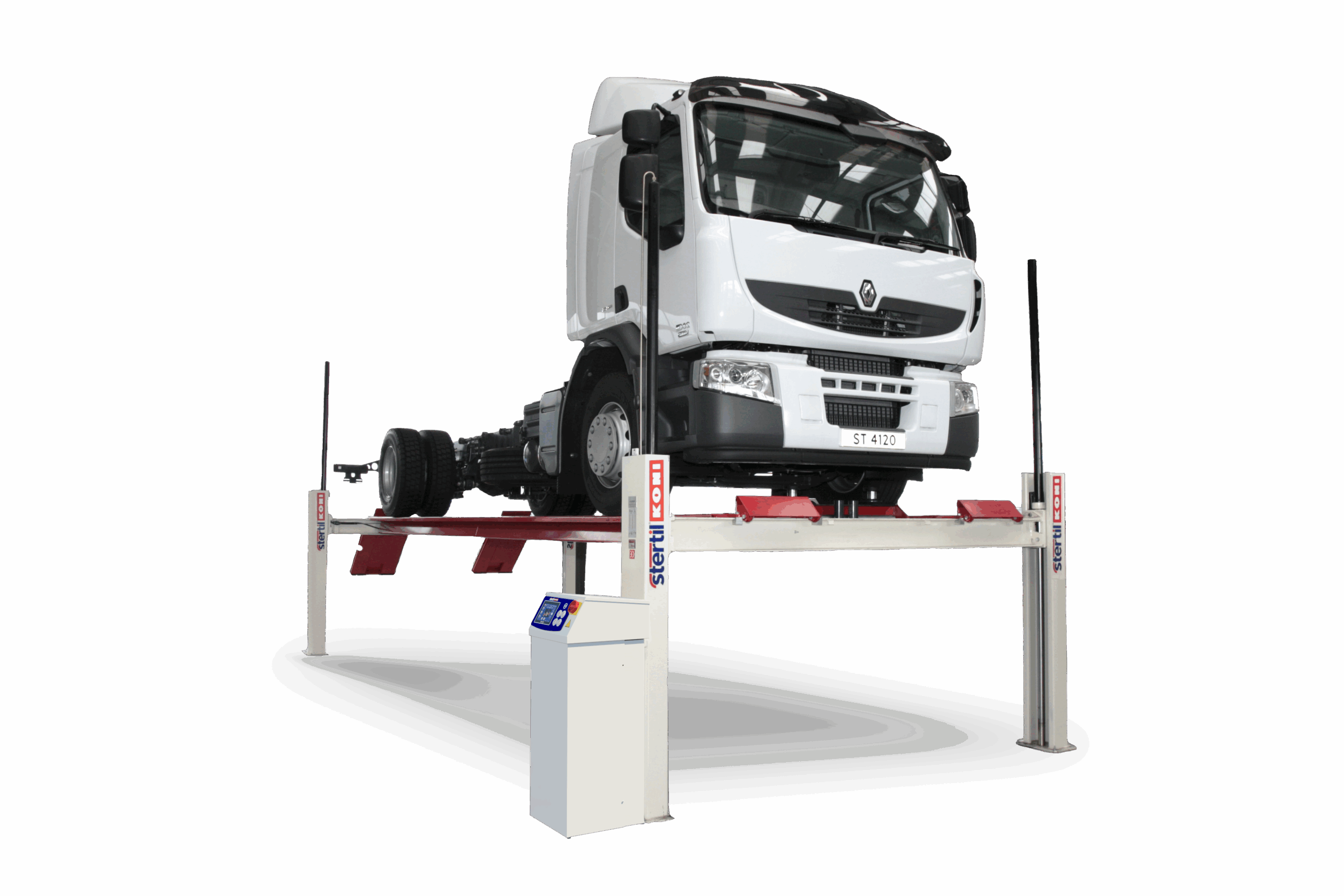

ST 4120 4-Post Lift (12t)

Perfect for heavy-duty vans, trucks, and forklifts.

1. Lifting capacity: 12 tonnes
2. Platform lengths from 4.5 to 10 metres
3. Optional third platform for 3-wheel forklift lifting
4. ebright Smart Control System with 7″ touchscreen and configurable user settings
5. Low drive-on height (245 mm) for low-clearance vehicles
6. Can be installed surface-mounted or flush-mounted for workshop flexibility
7. Tandem configuration available for long vehicles

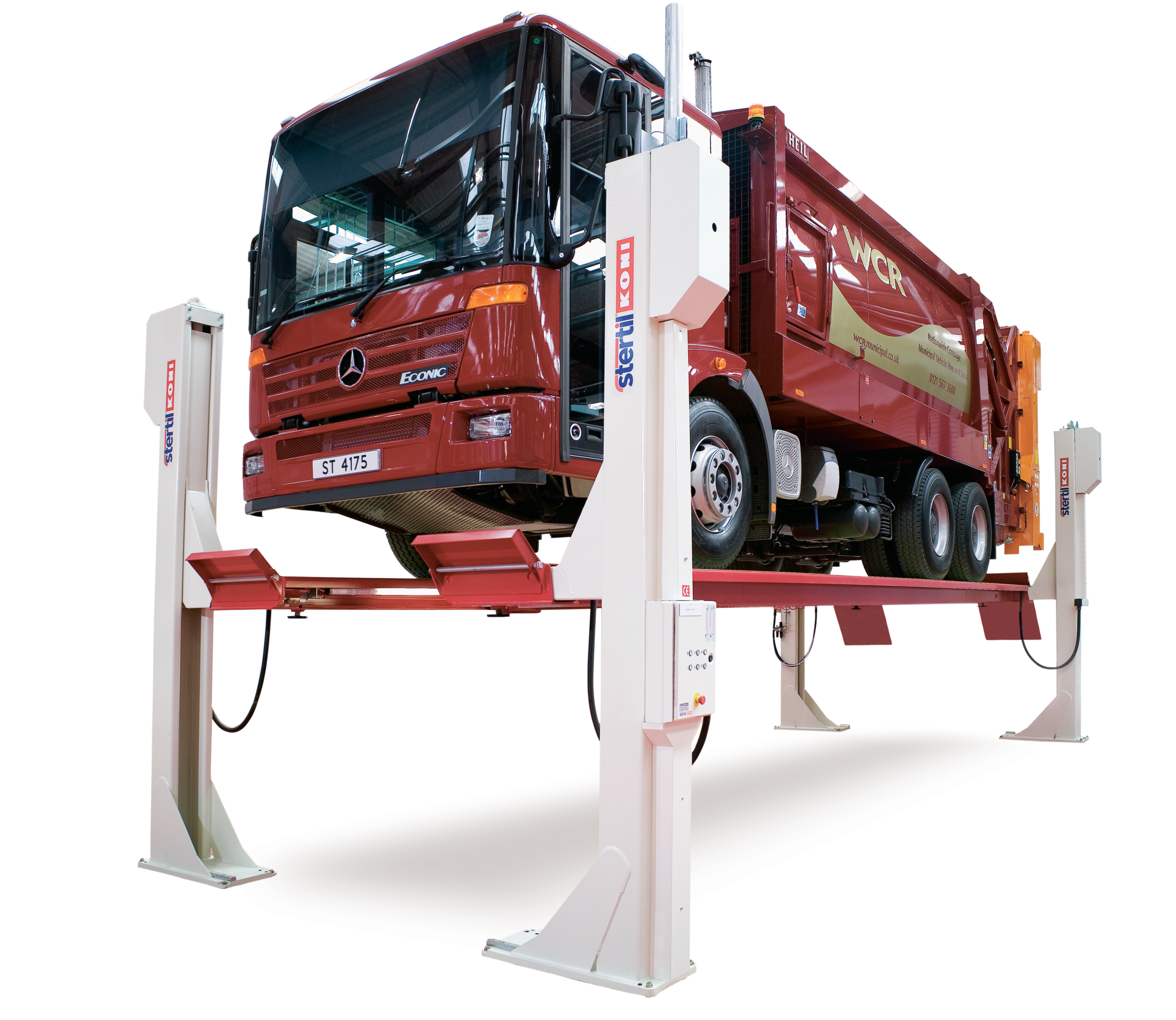

Ultra Heavy-Duty 4-Post Platform Lifts (17.5t & 25t)

• The ultimate solution for the heaviest transport applications.
• Capacities: 17.5 tonnes (ST 4175) and 25 tonnes (ST 4250)
• Crossbeam-free design for maximum lifting height and flexible installation width
• Tandem configurations available for articulated buses and extra-long vehicles up to 11.5 metres
• Compatible with jacking beams for wheel and axle work, keeping the workshop floor clear
• Ultimate safety system: Patented gravity mechanical locking, always active – Hydraulic oil flow control with integrated overpressure protection.
• Superior hydraulic technology: electronically controlled lifting, smooth lowering even under uneven loads
• Minimal maintenance thanks to reduced moving parts (no ropes or pulleys)
• Additional features: programmable lifting height, impact-resistant LED lighting, automatic foot protection warning system

Why Choose Stertil-Koni 4-Post Vehicle Lifts?

• Wide range of lifting capacities from 5.5t to 25t
• Flexible platform lengths and configurations for every vehicle type
• Unmatched safety features meeting CE (Europe), ALI-ETL (USA), and CSA (Canada) standards
• Space-saving designs that maximize workshop efficiency
• Durable, long-lasting construction, tested for up to 50,000 lift cycles at full load

From compact vans to articulated buses, Stertil-Koni 4-Post Lifts provide the strength, safety, and versatility workshops need for professional, efficient, and reliable vehicle maintenance.
